Pellet line

Connecting flue pipes for indoor use.

The connecting flue pipes for pellet stoves can reach a working temperature up to 200°C by using the silicone gaskets (supplied) or 300°C with Viton gaskets (only upon request).

The Linea Pellet (Pellet line) is used for smoke extraction in dry working conditions with negative pressure N1 40 Pa (without gasket), and in wet working conditions with positive pressure P1 200 Pa (with gasket).

It is available in diameters 80 and 100 mm, in black, grey and white colors.

Pellet Pipe

PN8001000mm Straight Pipe

PN801500mm Straight Pipe

PN802250mm Straight Pipe

PN10001000mm Straight Pipe

PN1001500mm Straight Pipe

PN1002250mmStraight Pipe

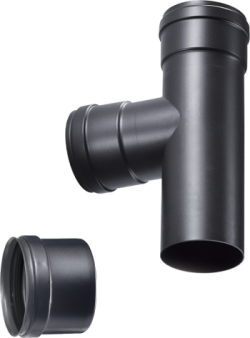

Pellet Tee

PN805F90° Tee F/F

PN1005F90° Tee F/F

PN818Ash Coll. C/W Coupling

PN819Silicone Ash Collector

PN1018Brass Ash Collector

PN1019Silicone Ash Collector

Pellet Bends

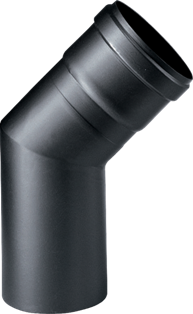

45° Bends

PN80445° Bend

PN101845° Bend

90° Bends

PN80390° Bend M/F

PN103M90° Bend M/M

PN100390° Bend M/F

PN1003M90° Bend M/M

PN80890° Bend M/F with Door

PN100890° Bend M/F with Door

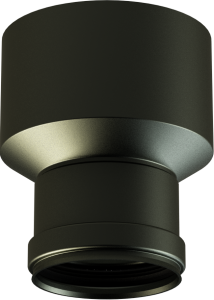

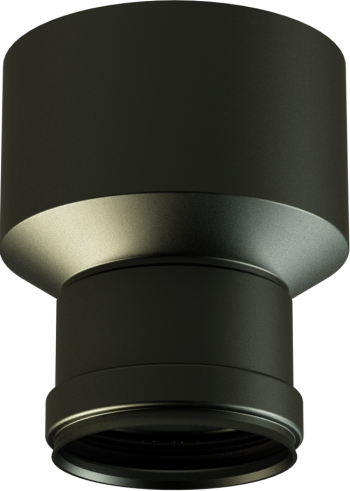

Pellet Reducer

PN8/10F100mm- M80mm Reducer

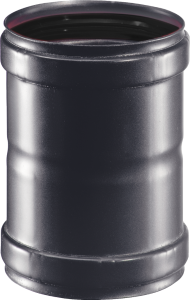

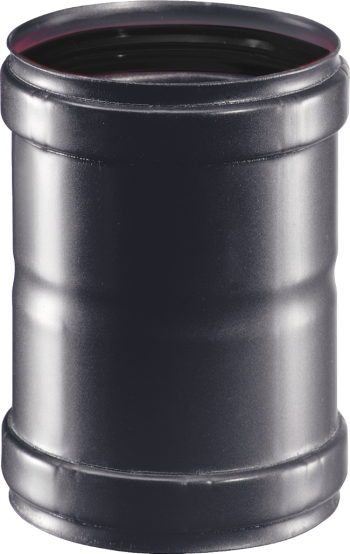

Pellet Coupler

PN817FFemale-Female Coupler

PN1017FFemale-Female Coupler

PN817MMale-Male Coupler

PN1017MMale-Male Coupler

PN10/8M100mm - F80mm Coupler

Pellet Gasket

Pellet Gasket

AS819VViton Gasket 300°

AS1019VViton Gasket 300°

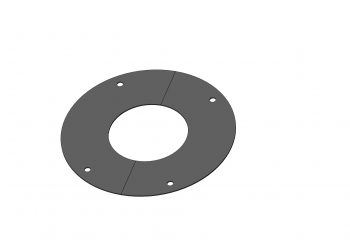

Pellet Rosette

PN810Pellet Rosette

PN1010Pellet Rosette

Pellet Wall Bracket

PN821Pellet Wall Bracket

PN1021Pellet Wall Bracket

Pellet Exhaust Terminal

Exhaust Terminal

AL824Exhaust Terminal

AL1024Exhaust Terminal

PRODUCT DESIGNATION

TW100mm-130mm

EN:1856-2. T200-P1-W-V2-L01120-G240 WOOD

T200-P1-W-V2-L01120-O040 GAS

T200-P1-W-V2-L01120-O010 GAS

T300-P1-W-V2-L01120-O40 GAS

T300-N1-W-V2-L01120-G40 WOOD

*Product Designation applicable to individual items,please check product.
